Scottish House Condition Survey 2015: Key Findings

3. Energy Efficiency

48. The energy efficiency of a dwelling depends on its physical characteristics. Factors such as the age of construction, the dwelling type, the heating and hot water systems in use and the extent to which the building fabric is insulated, all affect energy efficiency .

49. Based on information about the characteristics of the dwelling collected in the SHCS physical survey, and using some standard assumptions about the make-up and the behaviour of the occupying household, the energy consumption associated with the dwelling is modelled. This allows to make comparisons of energy use, emissions and energy efficiency ratings between dwellings that are independent of occupant behaviour. Further details on the methodology underpinning these measures of energy efficiency are provided in the Methodology Notes ^[11] .

50. In this chapter we report on analysis of:

• levels of insulation in Scottish dwellings ( section 3.1);
• Energy Efficiency Ratings ( EER), also known as SAP ratings ( section 3.3);
• modelled CO ₂ emissions from dwellings ( section 3.5); and
• Environmental Impact Ratings ( section 3.6).

3.1 Insulation Measures

• The majority of loft spaces are insulated. As of 2015, at least 100 mm of loft insulation is installed in an estimated 92% of lofts. This is an increase of 10 percentage points on 2010 levels
• 8% of lofts (an estimated 144,000 dwellings) have less than 100 mm of insulation or no insulation at all and would benefit from retrofit or top up measures. This is similar to 2014.
• Lofts with a high standard of insulation (300 mm or more) continue to show a significant year on year increase. In 2015 32% of lofts were insulated to this standard, an increase of 5 percentage points from 2014.
• The proportion of insulated cavity walls recorded by the SHCS was 71% in 2015. This is similar to the previous year. In the longer term the share of insulated cavity walls has grown by 9 percentage points since 2010 and 6 percentage points since 2011.
• The proportion of solid wall dwellings with insulation was 11% in 2015. No increase since 2014 was recorded by the survey.
• There still remains a significant difference in the uptake of wall insulation measures between the private and social sectors.

51. Installing or upgrading insulation is one of the most effective ways to improve the energy efficiency of a building. The Energy Saving Trust estimates that an un-insulated dwelling loses a third of all its heat through the walls and a further quarter through the roof ^[12] . As a result, insulation can significantly increase thermal comfort and reduce heating bills.

52. Additional insulation is most commonly added to a property through the insulation of loft spaces and by adding insulating material to external walls.

3.1.1 Loft Insulation

53. Since 2010, an overall improvement in loft insulation has occured. The proportion of all housing with 100 mm or more of loft insulation increased 10 percentage points on 2010 levels, with 92% of applicable dwellings insulated in 2015 (see Table 10).

54. Lofts with a high standard of insulation (300 mm or more) continue to show a significant year on year increase. While only 5% of lofts were insulated to this standard in 2010 (the first year the SHCS captured this information), by 2015 this figure had increased to 32%. This is an increase of 5 percentage points from 2014.

55. The proportion of dwellings without loft insulation was 1% of all dwellings with lofts in 2015.

56. Figure 9 shows the level of loft insulation in all dwellings back to 2003/4.

57. The number of dwellings with no loft insulation has fallen from 6% in 2003/4 to 1% in 2015. Most of this decline occurred before 2010. Since then improvement has slowed down, suggesting that there may be barriers preventing the installation of insulation in the relatively few remaining lofts.

58. Over the same period the thickness of loft insulation has increased significantly. In 2015, 64% of dwellings with lofts had insulation with a depth of 200 mm or more. Much of this increase has occurred since 2009 ( Figure 9), when 27% of lofts fell into this group and can largely be attributed to the installation of top up insulation.

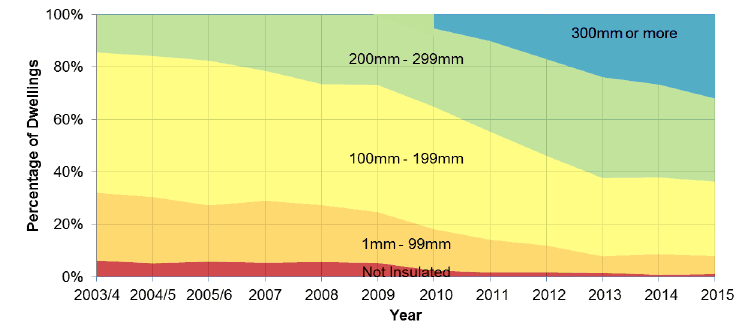

Figure 9: Depth of Loft Insulation (where applicable) 2003/04 - 2015

Note: A dwelling is classified as 'not applicable' for loft insulation if it has a flat roof or another dwelling above it ( i.e. it is a mid- or ground-floor flat).

59. For 2009 the SHCS estimated that 1,318,000 lofts had less than 200 mm of insulation, as shown in Table 9. By 2015 this number had decreased by approximately 655,000 to an estimated 663,000 lofts.

60. Between April 2008 and December 2012, the UK government Carbon Emissions Reduction Target ( CERT) scheme delivered 410,937 loft insulation measures in Scotland ^[13] .

61. Between January 2013 and December 2015 a further 39,279 loft insulation measures were delivered in Scotland by its successor scheme ECO ^[14] .

62. In total, around 450,000 loft insulation measures have been installed under these government programs since 2008 .

Table 9: Depth of Loft Insulation (000s), 2009 to 2015

Loft Insulation	2015	2014	2013	2012	2011	2010	2009
none	19	15	27	31	32	42	96
1mm-99mm	125	143	113	185	225	279	349
100mm-199mm	518	528	534	617	745	822	872
Subtotal: <200mm	663	686	675	834	1,002	1,143	1,318
200mm or more	1,161	1,123	1,118	975	812	621	485
Not applicable	610	611	606	577	554	592	542
All Dwellings	2,434	2,420	2,399	2,386	2,368	2,357	2,344
Sample size	2,754	2,682	2,723	2,787	3,219	3,114	3,346
Cumulative recorded loft insulation measures under government schemes [15]
CERT (000s)				411	269	157	92
ECO (000s)	39	30	10

63. As shown in Table 10 thickness of loft insulation is greater in social sector dwellings. In 2015, 91% of private housing lofts were insulated to 100 mm or more and 61% to at least 200 mm. In the social sector, 96% of dwellings had lofts insulated to 100 mm or more, and 75% had at least 200 mm of loft insulation.

64. One of the reasons for this difference between private and social sector is that the Scottish Housing Quality Standard ( SHQS) requires at least 100 mm of loft insulation. The SHQS was introduced in 2004, and all social rented dwellings were required to meet this standard by 2015 (see section 6.2.2 for more information).

65. The difference in the proportion of lofts with at least 100 mm insulation between the private and the social sector has been reducing gradually, from 17 percentage points in 2003/04 (81% in the social and 64% in the private sector) to 6 percentage points in 2015 (96% in the social sector and 91% in the private).

Table 10: Depth of Loft Insulation (000s and %) by Tenure, 2014 and 2015 ^[16]

Year	Loft Insulation	Private Sector		Social Sector		All Tenures
		000s	%	000s	%	000s	%
2015	none	17	1%	2	1%	19	1%
	1mm - 99mm	113	8%	13	4%	125	7%
	100mm+	1,332	91%	347	96%	1,680	92%
	100mm - 199mm	442	30%	76	21%	518	28%
	200mm - 299mm	455	31%	121	34%	576	32%
	300mm or more	435	30%	150	41%	585	32%
	Total	1,462	100%	362	100%	1,824	100%
2014	none	15	1%	-	-	15	1%
	1mm - 99mm	135	9%	7	2%	143	8%
	100mm+	1,287	90%	364	98%	1,651	91%
	100mm - 199mm	432	30%	96	26%	528	29%
	200mm - 299mm	481	33%	158	43%	639	35%
	300mm or more	374	26%	110	30%	484	27%
	Total	1,437	100%	371	100%	1,809	100%
Sample	2015		1,753		437		2,190
	2014		1,708		432		2,140

66. Between 2014 and 2015 the main improvement in loft insulation was in the growing share of lofts insulated to at least 300 mm, from 27% in 2014 to 32% in the following year. This is particularly evident in the social sector where this share rose from 30% to 41%.

3.1.2 Wall Insulation

67. The presence of cavity wall insulation ( CWI) is becoming increasingly difficult for SHCS surveyors to identify as over time the injection holes age, fade or are covered up by later work. Contractors are also getting better at disguising their work. This may mean that the SHCS under-estimates the number of homes which have had CWI installed (see also section 6.2.2). Despite efforts to maintain the high quality of the SHCS physical survey fieldwork, some misclassifications may remain.

68. In Scotland around three quarters of dwellings have external cavity walls and the remaining one quarter have solid or other construction types of external wall. These "other" types include steel or timber-frame dwellings and dwellings made from pre-fabricated concrete. Because the improvement of solid and other wall types generally requires more expensive interventions than CWI, this diverse group is addressed together in this chapter.

69. Table 11 and Table 12 show the number and proportion of insulated dwellings by type of external wall. Higher insulation levels in new buildings have been required by building standards since 1982. These dwellings are therefore presumed insulated when built.

Table 11: Cavity Wall Insulation, 2010 to 2015 ^[17]

	2015		2014		2013		2011		2010
	000s	%	000s	%	000s	%	000s	%	000s	%
Not insulated	525	29%	518	29%	554	31%	600	34%	671	38%
Insulated	1,286	71%	1,287	71%	1,218	69%	1,154	66%	1,076	62%
Total	1,811	100%	1,805	100%	1,772	100%	1,754	100%	1,747	100%
Sample		2,099		2,017		2,051		2,414		2,337
Cumulative reduction in uninsulated cavity wall dwellings since 2007, SHCS
000s	291		298		262		216		145
Cumulative recorded CWI installations under government schemes since 2007, thousands
CERT [18]							178		130
ECO [19]	74		55		19

70. In 2015 71% of cavity wall dwellings in Scotland were insulated ( Table 11). This is the same as recorded by the survey in 2014. Although we know from administrative data that at least 18,000 cavity wall dwellings were insulated during 2015 (through ECO), the change from 2014 has not been picked up by the survey, which is only based on a sample of all dwellings. However the longer term trend is consistent with administrative data, which shows an increase in the share of insulated cavity walls of 6 percentage points since 2011 and 9 percentage points since 2010. This increase is broadly equivalent to the number of cavity wall insulation measures installed under the Carbon Emissions Reduction Target ( CERT) and its successor scheme, the Energy Company Obligation ( ECO) which began in 2013.

71. Between April 2008 and December 2012, the UK government Carbon Emissions Reduction Target ( CERT) scheme delivered around 227,000 wall insulation measures in Scotland ^[20] (218,000 cavity and 9,000 solid and other walls). Between January 2013 and December 2015 a further 73,718 cavity and 28,610 solid wall insulation measures were delivered in Scotland by the successor Energy Company Obligation ( ECO) scheme ^[21] . This equates to a total of around 329,000 wall insulation measures being installed under these two government programs by the end of 2015 , including around 292,000 cavity wall insulation measures. This is almost identical to the cumulative reduction of 291,000 uninsulated cavity wall dwellings reported by the SHCS since 2007 ( Table 11).

72. Table 12 shows the levels of insulation in dwellings with solid or other construction type walls recorded by the survey in 2015. The results show that 11% of dwellings in this category had insulated walls. The difference with the level recorded in the previous year (14%) is within the margin of error. Only 655 dwellings with solid walls were surveyed in 2015 as part of the SHCS. This relatively small sample does not allow enough precision to capture the increase in solid wall insulation measures which we know from administrative data is taking place. Since the beginning of January 2013 at least 28,610 solid wall insulation measures were delivered in Scotland ^[22] , however the proportion of insulated solid wall dwellings recorded by the SHCS has stayed more or less constant between 9% and 17% (allowing for sampling error).

73. Further information on insulation levels by wall type for the private and social housing stock is provided in Table 13.

Table 12: Wall Insulation of Solid and Other Wall Types, 2011 to 2015 ^[23]

	2015		2014		2013		2012		2011
	000s	%	000s	%	000s	%	000s	%	000s	%
Not insulated	552	89%	528	86%	559	89%	557	89%	546	89%
Insulated	71	11%	85	14%	71	11%	66	11%	68	11%
Total	623	100%	613	100%	630	100%	623	100%	614	100%
Sample		655		663		674		711		805
Cumulative recorded EWI installations under government schemes since 2007, thousands
CERT [24]							9		5
ECO [25]	29		18		4

74. Around three quarters (73%) of cavity wall dwellings and a quarter (25%) of dwellings with other wall types in the social sector are estimated to have insulation in 2015. Two-thirds (66%) of social housing overall had insulated walls.

75. Over two thirds (70%) of private sector cavity wall dwellings, and 9% of solid wall dwellings, had insulation in 2015. Just over half (52%) of all private sector dwellings had insulated walls.

76. The information in Table 12 is broken down by type of cavity wall into hard to treat cavities ( HTTC) and standard cavity walls using the ECO definition as far as possible with the available data (further details on the definition are available in section 7.5.6.). HTTCs have certain attributes which make CWI more expensive, complex or simply inadvisable. Standard cavity walls have no such barriers.

Table 13: Insulation by Wall Type and Tenure, 2015 and Insulation of all Wall Types by Tenure, 2014 and 2015 ^[26]

Wall and Insulation Type	Private Sector			Social Sector			Total
	000s	%wall	% all	000s	%wall	%all	000s	%wall	%all
2015
Cavity
Un-insulated	392	30%	21%	133	27%	23%	525	29%	22%
- HTTC	130	10%	7%	58	12%	10%	188	10%	8%
- Standard	262	20%	14%	75	15%	13%	337	19%	14%
Insulated	920	70%	50%	366	73%	62%	1,286	71%	53%
- CWI	462	35%	25%	198	40%	34%	659	36%	27%
- Int/External	40	3%	2%	68	14%	12%	108	6%	4%
- As built	418	32%	23%	100	20%	17%	519	29%	21%
Total	1,312	100%	71%	499	100%	85%	1,811	100%	74%
Sample size		1,527			572			2,099
Solid/Other
Un-insulated	484	91%	26%	67	75%	11%	552	89%	23%
- Pre-1919	413	78%	22%	40	45%	7%	453	73%	19%
- Post-1919	72	13%	4%	27	30%	5%	98	16%	4%
Insulated	48	9%	3%	23	25%	4%	71	11%	3%
- Retrofit	41	8%	2%	23	25%	4%	63	10%	3%
- As built	8	1%	0%	-	-	-	8	1%	0%
Total	533	100%	29%	90	100%	15%	623	100%	26%
Sample size		568			87			655
All Wall Types
Uninsulated	877		48%	200		34%	1077		44%
Insulated	968		52%	389		66%	1357		56%
Total	1,845		100%	589		100%	2,434		100%
Sample size			2,095			659			2,754
2014: All Wall Types
Uninsulated	855		48%	191		31%	1,046		43%
Insulated	938		52%	435		69%	1373		57%
Total	1,792		100%	626		100%	2,418		100%
Sample size	2,008			672			2,680

77. Overall, the majority of work done to cavity walls has been CWI; 36% of cavity wall dwellings in Scotland have had retrofit cavity wall insulation, which is generally the lowest cost improvement available.

78. Levels of insulation are higher in the social sector 66% (all wall types) compared with 52% in the private sector. The difference is more marked with respect to the more expensive measures, internal/external insulation of cavity walls (14% of cavity wall dwellings in the social sector compared to 3% in the private) and solid wall insulation measures (25% compared to 8% respectively).

79. No improvement in wall insulation levels is recorded in the survey for either the private or the social housing sector since 2014.

3.2 Boilers

80. The heating system is a key factor in the thermal efficiency of a dwelling.

81. Around 85% of households use a gas or oil-fuelled boiler. Trends in boiler efficiency are closely related to developments in energy efficiency and building standards regulations:

• From 1998, minimum boiler efficiency standards were set by European Council Directive 92/42/ EEC ^[27]
• Since 2007, Scottish Building Standards increased the efficiency requirements for all new and replacement boilers ^[28]

82. Building regulations in Scotland effectively require the installation of a condensing boiler ^[29] for gas and oil-fuelled heating in new builds or when boilers are replaced.

83. The SHCS records the age of the heating system since 2010 and contains sufficient data to derive the Seasonal Efficiency ( SEDBUK) ratings of surveyed boilers in the 2012-2015 data collections. For these years we can track the energy efficiency improvement of gas and oil boilers associated with the rising standards of the regulatory framework.

84. The minimum requirements for the installation of new boilers in new buildings are: a minimum efficiency of 88% for standard gas, oil and LPG boilers and 86% for condensing combination boilers; 75% for gas ranges and 63% for gas room heaters; 80% for oil-fuelled ranges and 60% for oil room heaters ^[30] .

Table 14: Gas and Oil Boiler Improvements, 2007-2015

	2015	2014	2013	2012	2011	2010	2009	2008	2007
Households using gas or oil boilers for heating
%	85%	84%	84%	82%	83%	83%	83%	82%	82%
000s	2,075	2,041	2,022	1,960	1,963	1,945	1,935	1,906	1,896
… of which
% "new" boilers (post-1998)	89%	85%	83%	81%	73%	70%
% condensing boilers	56%	48%	43%	38%	33%	22%	17%	12%	7%
% standards compliant	48%	41%	38%	32%
Sample (gas/oil boilers)	2,259	2,195	2,219	2,222	2,601	2,488	2,684	2,414	2,410

85. In 2015 the survey found that 89% of the domestic gas and oil boilers in Scotland were installed since 1998, when the European Boiler Efficiency Directive minimum standards came into effect. The proportion installed in accordance with this directive has increased by 19 percentage points since 2010.

86. In 2015, over half (56%) of gas and oil boilers were condensing boilers. This represents a rapid increase of 49 percentage points over eight years.

87. In 2015, 48% of gas and oil boilers meet the minimum efficiencies specified by current Building Standards, an increase of 7 percentage points from 2014. As older boilers reach the end of their life and are replaced, we expect to see a continuation of this trend of improving efficiency.

3.3 Energy Performance Certificates

• Just over two-fifths (42%) of the housing stock in 2015 had an EPC rating of C or better (under SAP 2009), up 18 points since 2010.
• 37% of all properties were rated C or better under SAP 2012 and half of all Scottish dwellings were rated 65 or better.

88. Energy Performance Certificates ( EPC) ^[31] were introduced in January 2009 under the requirements of the EU Energy Performance Building Directive ( EPBD). They provide energy efficiency and environmental impact ratings for buildings based on standardized usage. EPCs are required when a property is either sold or rented to a new tenant.

89. EPCs are generated through the use of a standard calculation methodology, known as Standard Assessment Procedure ( SAP). SAP is the UK Government approved way of assessing the energy performance of a building, taking into account the energy needed for space and water heating, ventilation and lighting and, where relevant, energy generated by renewables.

90. The Energy Efficiency Rating ( EER) is expressed on a scale of 1-100 where a dwelling with a rating of 1 will have very poor energy efficiency and high fuel bills, while 100 represents very high energy efficiency and low fuel bills. Ratings can exceed 100 where the dwelling generates more energy than it uses.

91. Ratings are adjusted for floor area so that they are essentially independent of dwelling size for a given built form.

92. For Energy Performance Certificates EERs are presented over 7 bands, labeled A to G. Band A represents low energy cost and high energy efficiency, while band G denotes high energy cost (and low energy efficiency).

93. Energy Efficiency Ratings reported in this publication are calculated under two versions of SAP, the SAP 2009 methodology ^[32] and the most recent SAP 2012 methodology ^[33] . Using SAP 2009 enables us to examine the trend in the energy efficiency of the housing stock since 2010. SAP 2012 was first used in reporting data from the SHCS in the 2014 Key Findings report and therefore only two years of data are available.

3.3.1 Energy Efficiency Rating, SAP 2009

94. Table 15 shows the trend in mean EE Ratings, which rose from 59.9 in 2010 to 64.6 in 2014. These EE Ratings fall into band D. There has been around a 1 point increase in the average EE Rating each year since 2010, except in the last year.

Table 15: Average EER for 2010 - 2015, SAP 2009

		2015	2014	2013	2012	2011	2010
EER	Mean	64.6	64.1	63.2	61.8	60.9	59.9
	Median	67	67	66	64	63	62
Sample		2,754	2,682	2,725	2,787	3,219	3,115

95. The median EE Rating has also improved over this period. In 2015 half of all Scottish dwellings were rated 67 or better, similar to the previous year.

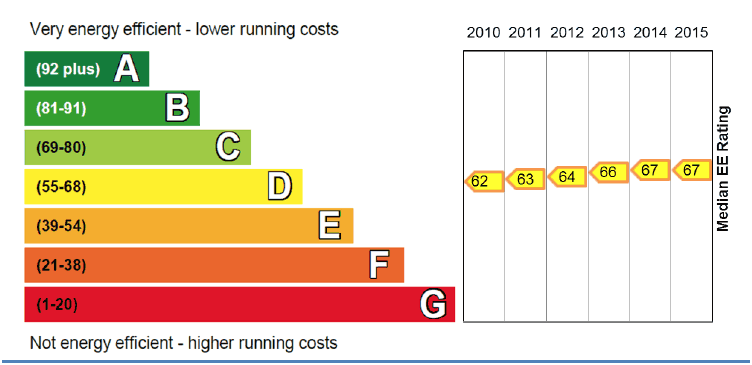

Figure 10: Median EER relative to EPC bands, SAP 2009, 2010-2015

96. The average figures reflect that Scottish housing is gradually moving up through the EPC bands (where A is the most energy efficient), as shown in Figure 11 and Table 16.

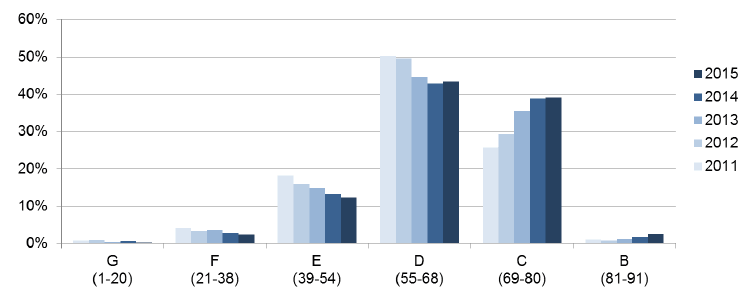

Figure 11: Distribution of the Scottish Housing Stock by EPC Band, SAP 2009, 2011-2015

Values for this figure are provided in Table 16.

97. Just over two-fifths (42%) of the housing stock in 2015 had an EPC rating of C or better, up 18 points since 2010 ( Table 16). Over the period 2010-2015, the proportion of properties in the lowest EPC bands, E, F and G, has nearly halved: 27% of properties were rated E, F or G in 2010 compared with 15% in 2015.

Table 16: Distribution of the Scottish Housing Stock by EPC Band, SAP 2009, 2010-2015

EPC band	2015		2014		2013		2012		2011		2010
	000s	%	000s	%	000s	%	000s	%	000s	%	000s	%
A (92-100)	-	-	-	-	-	-	-	-	-	-	-	-
B (81-91)	62	3%	42	2%	29	1%	20	1%	25	1%	18	1%
C (69-80)	953	39%	939	39%	851	36%	699	29%	606	26%	547	23%
D (55-68)	1,055	43%	1,037	43%	1,072	45%	1,184	50%	1,191	50%	1,157	49%
E (39-54)	298	12%	321	13%	359	15%	381	16%	431	18%	495	21%
F (21-38)	59	2%	68	3%	84	4%	82	3%	96	4%	127	5%
G (1-20)	7	0%	14	0%	8	0%	21	1%	19	1%	13	1%
Total	2,434	100%	2,420	100%	2,402	100%	2,386	100%	2,368	100%	2,357	100%
Sample	2,754		2,682		2,725		2,787		3,219		3,115

No A-rated properties were sampled between 2010 and 2015.

3.3.2 Energy Efficiency Rating, SAP 2012

98. This section examines the energy efficiency profile of the Scottish housing stock in 2015 under the most recent SAP 2012 methodology ^[34] .

99. SAP is periodically reviewed by the UK government to ensure it remains fit for purpose and to address application across an increasing range of carbon and energy reduction policy areas. SAP is used for assessment of new buildings whilst a 'reduced data' version of the methodology, RdSAP, is applied to assessment of existing buildings. On 7 December 2014, a new edition of RdSAP (version 9.92) ^[35] was implemented across the UK. In addition to introducing some technical updates and broadening of scope (for example, enabling assessment of 'park homes' as a dwelling type), the new edition includes updated UK carbon factors and fuel costs based upon recent research undertaken by BEIS.

100. Tables 17 and 18 show the energy efficiency profile of the Scottish housing stock in 2015 under SAP 2012, and in comparison to 2014. Figure 12 shows this alongside the longer term change as measured by SAP 2009.

Table 17: Average EER for 2015 and 2014, SAP 2012

		2015	2014
EER	Mean	62.8	62.2
	Median	65	65
Sample		2,754	2,682

101. In 2015, the mean energy efficiency rating of the Scottish housing stock under SAP 2012 is 62.8 and the median is 65 points, indicating that half of the housing stock has an energy efficiency rating of 65 or better. The apparent small improvement in the mean rating since 2014 in Table 17 is within the margin of error.

102. Over a third (37%) of all properties were rated C or better and about a fifth (20%) were in bands E, F or G.

Table 18: Distribution of the Scottish Housing Stock by EPC Band in 2014 and 2015, SAP 2012

EPC Band	2015		2014
	000s	%	000s	%
A (92-100)	-	-	-	-
B (81-91)	53	2%	29	1%
C (69-80)	837	34%	830	34%
D (55-68)	1,061	44%	1,052	43%
E (39-54)	368	15%	369	15%
F (21-38)	94	4%	115	5%
G (1-20)	20	1%	25	1%
Total	2,434	100%	2,420	100%
Sample	2,754		2,682

No A-rated properties were sampled in 2014 or 2015.

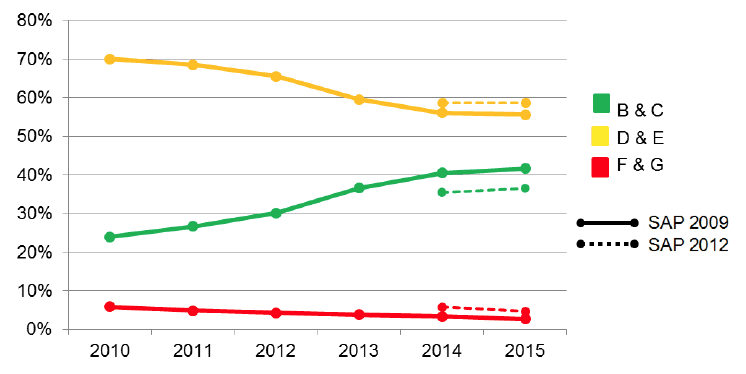

103. Figure 12 shows a strong trend of improvement in the energy efficiency profile of the housing stock since 2010. The proportion of dwellings rated C or better increased from 24% to 42% of the stock (as measured under SAP 2009), equivalent to a 74% improvement in the share of the most energy efficient dwellings. The observed improvement in the last year, as measured by both SAP 2009 and SAP 2012 is within the margin of error for this survey.

Figure 12: Grouped EPC Bands under SAP 2009 and SAP 2012, 2010-2015

104. Table 19 shows the energy efficiency profile by broad tenure groups in 2015 using SAP 2012. Figure 13 provides more details on the distribution of the least energy efficiency properties by selected dwelling and household characteristics.

Table 19: EPC Band by Broad Tenure in 2015, SAP 2012

EPC Band	Owner occupied		Private rented		Social sector		All Tenures
	000s	%	000s	%	000s	%	000s	%
A (92-100)	-	-	-	-	-	-	-	-
B (81-91)	23	2%	12	3%	18	3%	53	2%
C (69-80)	460	31%	103	30%	274	46%	837	34%
D (55-68)	690	46%	131	38%	239	41%	1,061	44%
E (39-54)	258	17%	65	19%	45	8%	368	15%
F (21-38)	54	4%	26	8%	13	2%	94	4%
G (1-20)	17	1%	4	1%	-	-	20	1%
Total	1,502	100%	342	100%	589	100%	2,434	100%
Sample	1,740		355		659		2,754

105. Nearly half (49%) of social housing is in band C or better under SAP 2012, compared to around a third of dwellings in the private sector. Ten percent of dwellings in the social sector are in bands E, F or G, while 22% of owner occupied dwellings and 28% of the private rented sector are within these EPC bands.

106. The share of dwellings in the lowest energy efficiency bands (F and G) is particularly high for pre-1919 dwellings (14%), non-gas heated properties (between 17% and 20%), detached properties (11%) and in the private rented stock (9%) ( Figure 13). The average for Scotland as a whole is 5%.

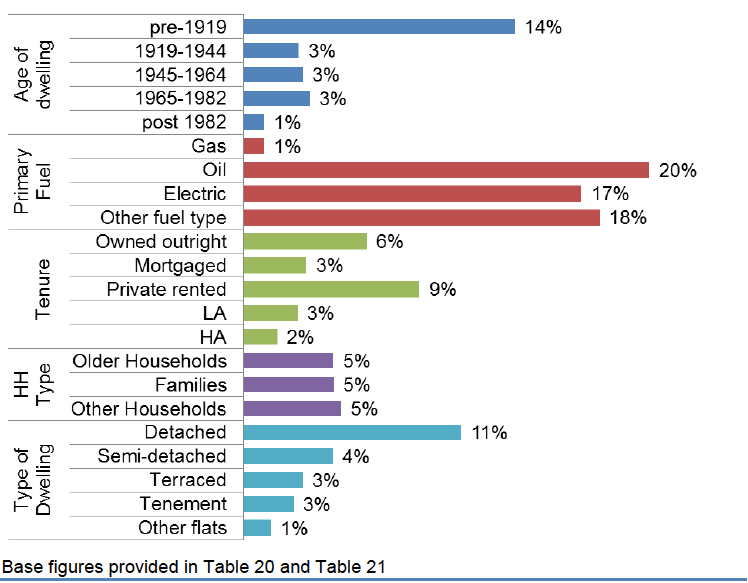

Figure 13: Proportion of Homes in Band F or G by Dwelling Age, Primary Heating Fuel, Tenure and Household and Dwelling Type in 2015, SAP 2012

Base figures provided in Table 20 and Table 21

107. More detailed breakdowns in terms of average scores and EPC bands are shown in Table 20 (by household characteristics) and Table 21 (by dwelling attributes). .

108. The average energy efficiency rating for Housing Association dwellings is higher than other tenure groups, at 69.2. Social housing as a whole is more energy efficient than private sector dwellings, with a mean of 66.7 compared to 61.6 for private dwellings.

Table 20: Mean EER and Broad EPC Band, by Household Characteristics in 2015, SAP 2012

	EE Rating	Band			Sample
	Mean	BC	DE	FG
Tenure
Owned outright	60.1	26%	67%	6%	929
Mortgaged	63.6	38%	59%	3%	811
LA/Other public	64.8	38%	59%	3%	380
HA/co-op	69.2	65%	34%	2%	279
PRS	60.7	34%	57%	9%	355
Private	61.6	32%	62%	5%	2,095
Social	66.7	49%	48%	2%	659
Household Composition
Older Households	61.9	32%	64%	5%	841
Families	64.2	41%	54%	5%	679
Other households	62.8	37%	58%	5%	1,234
Weekly Household Income
< £200	63.1	37%	59%	4%	328
£200-300	64.4	41%	54%	4%	475
£300-400	63.7	40%	56%	3%	463
£400-500	62.0	29%	67%	4%	322
£500-700	61.4	33%	60%	7%	480
£700+	62.6	38%	57%	5%	640
Council Tax Band
Band A	64.4	40%	56%	3%	546
Band B	62.3	35%	59%	5%	644
Band C	63.0	36%	60%	5%	466
Band D	63.0	38%	58%	4%	375
Band E	61.7	34%	59%	7%	377
Band F	63.2	36%	60%	4%	200
Band G & H	62.0	38%	58%	4%	137
Scotland	62.8	37%	59%	5%	2,754

Note: The age threshold for older households in 2015 has changed to 65 for both men and women. This affects comparability with 2014 across household types, except for families .

109. The association between the dwelling characteristics and energy efficiency rating, as shown in Table 21, is strong. Across dwelling types, detached properties have the lowest energy efficiency profile on average (mean EER 58.2) while flats have the highest rating (and average of 66.3 for tenements and other flats combined).

110. The oldest, pre-1919, properties are least energy efficient (with a mean EER of 54.8 and only 17% rated C or better) while those built after 1982 have the highest energy efficiency ratings (with a mean of 70.5 and 67% in band C or better). The remaining age categories are comparable in terms of their energy efficiency profile.

Table 21: SAP 2012: Mean EER, Differences from 2014 and Broad EPC Band, by Dwelling Characteristics, 2015

	EE Rating		Band			Sample
	Mean	Differences from 2014	BC	DE	FG
Dwelling Type
Detached	58.2		26%	63%	11%	692
Semi	61.1		26%	69%	4%	594
Terraced	63.3		35%	62%	3%	626
Tenement	66.4		51%	47%	3%	506
Other flats	66.0		46%	52%	1%	336
Age of dwelling
pre-1919	54.8	+3.2	17%	69%	14%	489
1919-1944	61.1		24%	73%	3%	321
1945-1964	63.0		34%	63%	3%	608
1965-1982	62.4		30%	67%	3%	644
post-1982	70.5		67%	31%	1%	692
Primary Heating Fuel
Gas	65.4		41%	58%	1%	2,033
Oil	49.5		8%	72%	20%	236
Electric	55.0		25%	58%	17%	401
Other	56.0		34%	48%	18%	79
Location
urban	64.6		40%	57%	2%	2,147
rural	54.1		19%	65%	17%	607
Gas Grid
On	64.4		38%	60%	2%	2,138
Off	55.1		29%	52%	19%	616
Scotland	62.8		37%	59%	5%	2,754

111. Primary heating fuel is a key determinant of the energy efficiency of the dwelling. Properties heated by mains gas have an average rating of 65.4 and 41% are in band C or better. Dwellings heated by other fuels have a considerably lower rating. The average energy efficiency rating for oil heated properties is 49.5 (making the average dwelling in this group D rated) and only 8% are in band C or better. Proximity to the gas grid has a similar effect on the energy efficiency rating. As dwelling characteristics associated with lower energy efficiency are disproportionately represented in rural areas, the average energy efficiency profile of rural properties tends to be lower than that for urban.

112. The only improvements since 2014 which pass the statistical significance test are a 3.2 points gain in the mean SAP score for pre-1919 dwellings and an increase in the share of B and C rated electrically heated properties, from 17% in 2014 to 25% in the following year.

3.4 National Home Energy Ratings ( NHER)

113. The National Home Energy Ratings ( NHER) system was the main methodology used in the SHCS to report on the energy efficiency of the housing stock prior to 2013. With the publication of the 2013 SHCS Key Findings Report the energy modelling methodology was updated and it is no longer possible to reproduce exactly the original NHER method, as the full documentation of this method is not publicly available. However because of user interest and because NHER scores are taken into account under the energy efficiency criterion of the SHQS, we provide an approximate NHER score. Further details on how this emulated NHER score compares to previously published NHER figures can be found in the Methodology Notes to the 2013 SHCS report ^[36] .

114. Table 22 presents banded NHER scores and mean values for selected categories of dwellings and household types for 2015.

Table 22: NHER Scores and Banded Ratings by Selected Dwelling and Household Characteristics, 2015

	Mean	NHER band			Sample
		Good	Moderate	Poor
Scotland	7.4	72%	26%	2%	2,754
Dwelling Type
Detached	6.7	61%	36%	3%	692
Semi-detached	7.0	67%	32%	2%	594
Terraced	7.3	76%	24%	1%	626
Tenement	8.0	80%	19%	2%	506
Other flats	7.8	82%	18%	0%	336
Age of dwelling
pre-1919	6.3	50%	45%	5%	489
1919-1944	7.0	67%	31%	1%	321
1945-1964	7.3	73%	26%	1%	608
1965-1982	7.2	73%	26%	1%	644
post-1982	8.5	92%	8%	0%	692
Primary Heating Fuel
Gas	7.7	80%	19%	0%	2,033
Oil	5.9	38%	58%	3%	236
Electric	5.9	41%	49%	10%	401
Other fuel type	7.1	58%	40%	2%	79
Tenure
Owner occupied	6.9	66%	32%	2%	929
Mortgaged	7.4	75%	24%	1%	811
LA	7.6	78%	20%	2%	380
HA	8.4	87%	12%	1%	279
Private rented	7.1	65%	33%	3%	355
Private Sector	7.2	69%	29%	2%	2,095
Social Sector	7.9	82%	16%	1%	659
Household Composition
Older Households	7.3	72%	27%	1%	841
Families	7.5	75%	23%	2%	679
Other Households	7.4	71%	27%	2%	1,234

Note: The age threshold for older households in 2015 has changed to 65 for both men and women. This affects comparability with 2014 across household types, except for families .

3.5 Carbon Emissions

115. Carbon Emissions are the amount of carbon dioxide gas vented to the atmosphere. Estimates of emissions from the residential sector which take into account actual energy consumption by households are reported by BEIS at Local Authority and Scotland level annually ^[37] . This methodology is consistent with the Greenhouse Gas Inventory ( GHGI) which is the source for monitoring progress against the Scottish Government's climate change commitments.

116. In contrast, emissions reported from the SHCS are modelled on the assumption of a standard pattern of domestic energy consumption and do not reflect differences in consumption behaviour due to preferences or changes in weather conditions. As such, they are distinct from the carbon emissions figures published by BEIS and compiled in GHG inventories. Table 23 shows modelled emissions from the SHCS and provides a comparison with the estimates published by BEIS for the period 2010-2014.

Table 23: Carbon Emissions and Modelled Emissions in Scottish Housing, 2010-2015

		2010	2011	2012	2013	2014*	2015*
Carbon Emissions 1: BEIS Domestic sector	Total (Mtonnes)	13.7	12.0	12.8	12.3	10.4
	per HH (tonnes) 2	5.8	5.1	5.4	5.1	4.3
	% change per HH	+6.0%	-13.0%	+6.1%	-4.3%	-16.6%
Modelled Emissions: SHCS	Total (Mtonnes)	18.6	18.2	18.1	17.4	17.9	17.7
	per HH (tonnes)	7.9	7.7	7.6	7.3	7.4	7.3
	% change per HH	-	-2.6%	-1.4%	-3.6%	+1.1%	-1.8%

[1] Local and Regional CO ₂ Emissions Estimates, BEIS
https://www.gov.uk/government/statistics/uk-local-authority-and-regional-carbon-dioxide-emissions-national-statistics-2005-2014

[2] Number of households ( HHs) sourced from Housing Statistics for Scotland: http://www.gov.scot/Topics/Statistics/Browse/Housing-Regeneration/HSfS/KeyInfoTables
* Modelled emissions figures for 2014 and 2015 are not fully comparable to previous years

117. In 2012, cooler temperatures led to an increase in domestic energy use and an increase in CO ₂ emissions from the domestic sector overall. This was reflected in the estimates of emissions levels from the domestic sector reported by BEIS. At the same time, modelled SHCS emissions per household fell by 1.4%, reflecting the improved energy efficiency of the sector in this period and the greater potential to reduce CO ₂ emissions. The SHCS estimates are not designed to capture the increased demand for heating due to colder weather in this particular year.

118. Estimates in the Second Report on Proposals and Policies ( RPP2) ^[38] are also not comparable to SHCS estimates. RPP2 figures relate to non-traded emissions only ( i.e. exclude electricity which is covered by the EU Emissions Trading System) while SHCS estimates cover all fuel types.

119. This report is only concerned with the level and variations in modelled emissions from the Scottish housing stock. These estimates are produced through the use of BREDEM 2012 - based models, in line with other statistics on energy efficiency and fuel poverty reported here.

120. To derive emissions estimates, modelled energy demand is combined with carbon intensity factors as adopted for the 2012 edition of the SAP (see section 7.3). These are CO ₂ equivalent figures which include the global warming impact of CH ₄ and N ₂O as well as CO ₂.

121. The change in the underlying BREDEM 2012 model for the reporting of 2014 data has meant that carbon emissions for 2014 and 2015, on the one hand, and the period 2010-2013, on the other, are not estimated on a consistent basis. Further details on this methodological change are given in the Methodology Notes to the 2014 Key Findings report ^[39] .

3.5.1 Modelled Emissions by Dwelling Type and Age of Construction

122. The annual modelled emissions from a property reflect the energy use for the whole dwelling heated according to the standard heating regime. As shown in Figure 14, dwellings with larger floor area generally have higher carbon emissions.

123. Newer dwellings have lower modelled emissions than older ones on average as a result of their better thermal performance and higher energy efficiency (as shown in section 3.3). Post-1982 flats have the lowest modelled emissions on average; less than 4 tonnes per year ( Table 24).

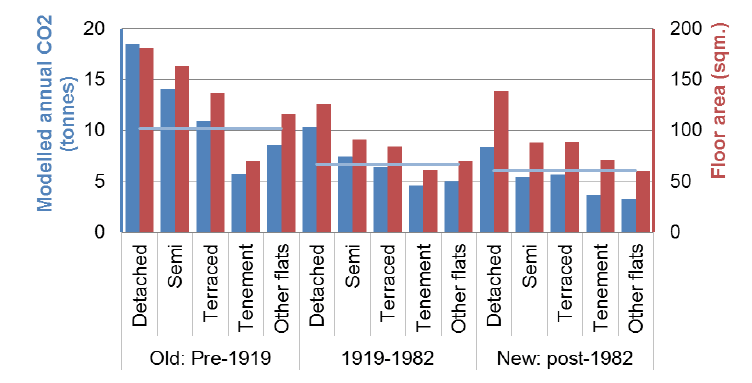

Figure 14: Average Floor Area and Average Modelled Annual Emissions by Age and Type of Dwelling, 2015

Note: Floor area for these subgroups are provided in section 2.1.1. Modelled carbon emissions figures are provided in Table 24.
The pale blue line indicates the average modelled emissions from the dwelling age group

Table 24: Average Modelled Annual Carbon Emissions (tonnes per year) by Dwelling Age and Type, 2015

Dwelling Type	Dwelling Age			All
	Pre-1919	1919-1982	Post-1982
Detached	18.4	10.3	8.4	11.1
Semi-detached	14.1	7.4	5.4	7.6
Terraced	10.9	6.4	5.7	6.8
Tenement	5.7	4.6	3.7	4.8
Other flats	8.6	5.0	3.3	5.5
All dwelling types	10.2	6.7	6.1	7.3

124. Across all age bands, detached houses have the highest modelled emissions due to a larger share of exposed surfaces. As shown in section 2.3, they are also the most likely to use high carbon-intensity fuels such as oil and coal in place of mains gas.

125. By dividing modelled emissions by total internal floor area we derive emissions per square meter (kg/m ²). Controlling for floor area in this way shows that pre-1919 detached houses have the highest modelled emissions per sq m (115 kg/m² ), as shown in Table 25. Post-1982 flats have the lowest emissions, at 56 kg/m ² for tenements and 60 kg/m2 for other flats.

Table 25: Average Modelled Emissions per Square Meter of Floor Area (kg/m ²) by Age and Type of Dwelling, 2015

Dwelling Age		Pre-1919	1919-1982	Post-1982	All Ages
Type	Detached	115	84	62	81
	Semi	92	84	64	80
	Terraced	87	78	67	77
	Tenement	88	76	56	76
	Other flats	78	73	60	73
All types		93	79	62	78

126. Controlling for floor area also demonstrates that a significant improvement in the level of emissions for older properties has occurred between 2014 and 2015. From 102 kg/m ² in 2014 the average emissions for this group has dropped to 93 kg/m ² in 2015, a reduction of nearly 10%.

3.5.2 Modelled Emissions by Tenure

127. Figure 15 and Table 26 show how emissions differ across tenure for the period 2010 - 2015. The pattern of differences across tenure types has remained similar to previous years: with highest rates of emissions observed for the PRS (87 kg/m ²) and lowest for the HA sector (70 kg/m ²) and the remaining types of tenure with similar values in between. Although there is a suggestion that emissions are declining across all types, these reductions are not statistically significant.

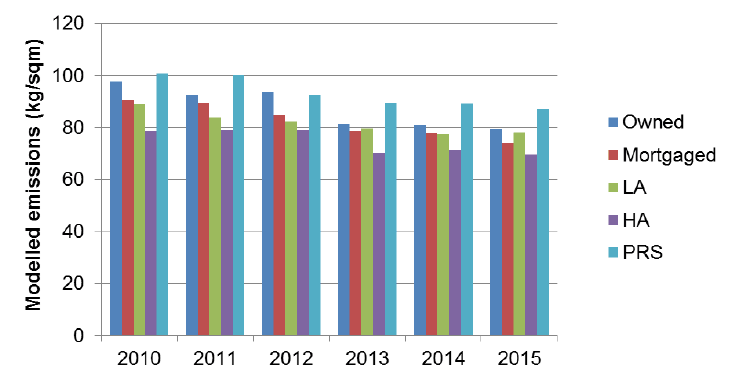

Figure 15: Modelled Emission per square meter (kg/m2) by Tenure, 2010-2015*

Note: * Figures for 2014 and 2015 are not fully comparable to previous years

Table 26: Average Modelled Emissions per Square Meter by Tenure, 2010-2015

	2015*	2014*	2013	2012	2011	2010
Owned outright	79	81	81	94	92	98
Mortgaged	74	78	79	85	90	90
LA/Other public	78	77	79	82	84	89
HA/co-op	70	71	70	79	79	79
PRS	87	89	90	93	100	101
All Tenures	78	80	80	88	90	92

Note: * Figures for 2014 and 2015 are not fully comparable to previous years

3.6 Environmental Impact Rating

128. The Environmental Impact Rating ( EIR) represents the environmental impact of a dwelling in terms of carbon emissions associated with fuels used for heating, hot water, lighting and ventilation. Ratings are adjusted for floor area so they are independent of dwelling size for a given built form. Emissions for this measure are calculated using SAP methodology.

129. EI ratings were previously published in the 2013 SHCS Key Findings report for the period 2010-2013 ^[40] . These were produced on the basis of SAP 2009 and are therefore not fully comparable to the EI rating for 2015 published in the current report which is based on SAP 2012.

130. Figure 16 illustrates the trend in the median EIR between 2010 and 2015. This indicates that the environmental impact of Scottish housing is falling over time.

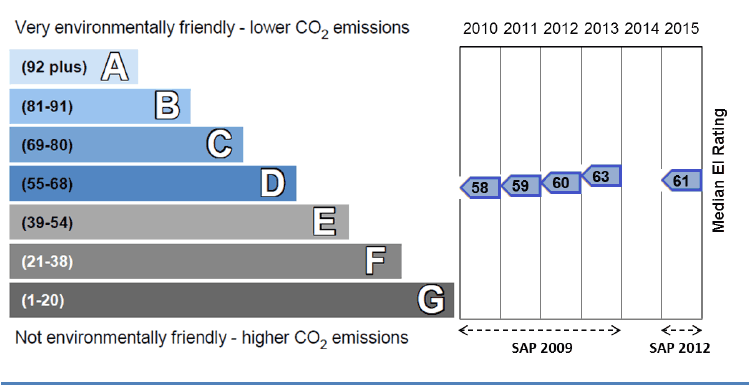

Figure 16: Median EIR relative to Band, 2010-2013 ( SAP 2009) and 2015 ( SAP 2012)

131. As shown in Table 27 the proportion of dwellings with EI ratings in band C or better in 2015 was 27%. The average rating was 58 which falls in band D.

132. In 2015, 11% of dwellings were rated F or G in terms of their environmental impact.

Table 27: EIR Bands in the Scottish Housing Stock, 2010-2013 and 2015

EPC Band	2015		2013		2012		2011		2010
	000s	%	000s	%	000s	%	000s	%	000s	%
A - B (81+)	102	4%	79	3%	71	3%	52	2%	55	2%
C (69-80)	554	23%	683	29%	524	22%	468	20%	424	18%
D (55-68)	926	38%	895	37%	888	37%	873	37%	857	37%
E (39-54)	576	24%	509	21%	587	25%	623	27%	615	26%
F (21-38)	221	9%	197	8%	248	10%	270	12%	297	13%
G (1-20)	55	2%	38	2%	64	3%	64	3%	81	4%
Total	2,434	100%	2,402	100%	2,383	100%	2,349	100%	2,330	100%
Mean		58.0		59.7		57.0		55.9		54.9
Median		61		63		60		59		58
Sample		2,754		2,725		2,783		3,191		3,073

133. Figure 17 illustrates that the energy efficiency and the environmental impact rating for the median Scottish dwelling have changed in parallel since 2010.

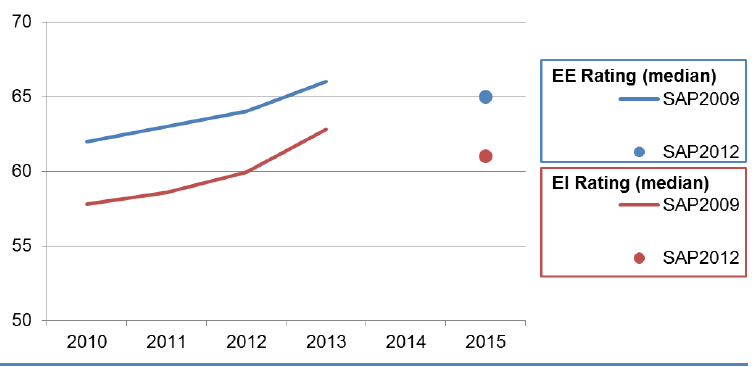

Figure 17: Trend in Median EE and EI Ratings, 2010-2013 and 2015

134. Table 28 shows how EI ratings vary across different type of dwellings. As expected dwellings built more recently have better environmental impact ratings with 53% rated C or better and only 3% in the bottom two bands (F and G). Flats have lower environmental impact than houses, as do gas heated properties compared to those using oil or electricity.

135. Oil heating systems and houses are more common in rural areas, leading to lower overall environmental impact ratings for rural dwellings.

Table 28: Mean EIR and Broad EIR Band, by Dwelling Characteristics, 2015

	Environmental Impact Rating	EI Band			Sample
	Mean	ABC	DE	FG
Dwelling Type
Detached	52.2	16%	63%	21%	692
Semi-detached	55.7	17%	71%	13%	594
Terraced	58.5	22%	68%	9%	626
Tenement	63.7	46%	48%	6%	506
Other flats	62.2	34%	60%	6%	336
Age of Dwelling
pre-1919	48.7	13%	61%	25%	489
1919-1944	56.5	18%	72%	10%	321
1945-1964	58.5	25%	65%	10%	608
1965-1982	57.6	18%	73%	9%	644
post-1982	67.5	53%	44%	3%	692
Primary Heating Fuel
Gas	61.9	31%	65%	4%	2,033
Oil	41.0	3%	55%	43%	236
Electric	43.8	9%	50%	41%	401
Other fuel type	58.1	57%	12%	31%	79
Urban-Rural Indicator
Urban	60.5	29%	64%	7%	2,147
Rural	47.6	16%	53%	31%	607
Gas Grid
On	60.0	27%	66%	7%	2,138
Off	49.4	27%	39%	35%	616
Scotland	58.3	27%	62%	11%	2,754
